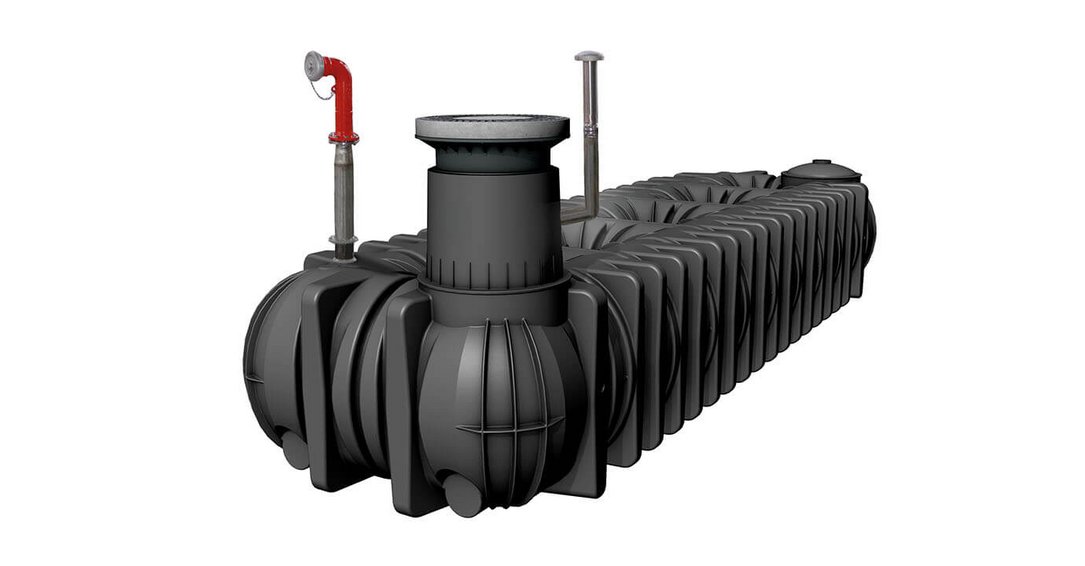

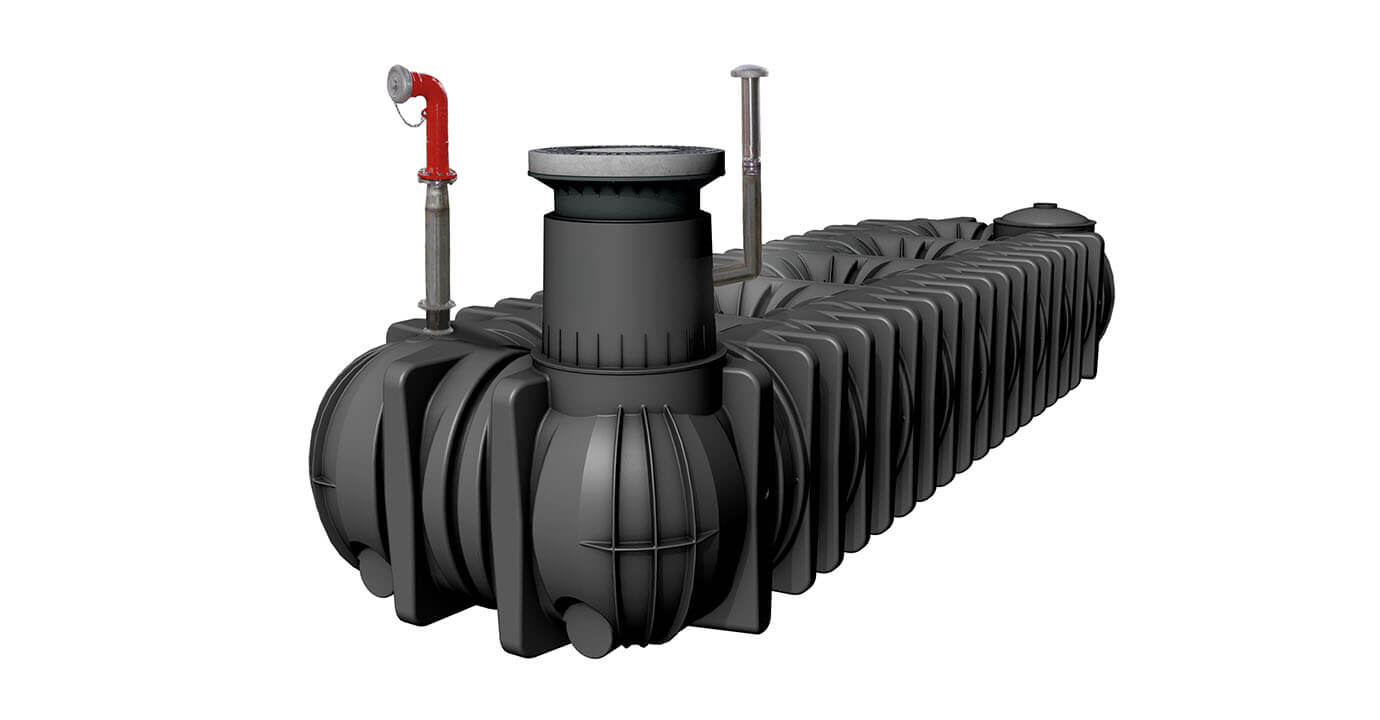

The Platin XXL firefighting water tank is available in sizes from 20,000 to 65,000 l and suitable for lorry bearing.

  • Delivery includes all firefighting water accessory parts to DIN 14230
  • Dome shaft allows easy access/ rescue from tank
  • Individual tanks can be enlarged/ connected to create large volumes
  • Fill with drinking water or rainwater
  • Suitable for HGV loading up to 30 t (66138 lbs) (With cover suitable for lorry-bearing in combination with load distribution plate)
  • Individual adjustment to ground level (earth covering/angle of slope)
  • Low procurement costs
  • Includes telescopic dome shaft suitable for lorry-bearing for customer to provide cover in accordance with DIN 3223
  • Dome opening with stainless steel profile for precision fit and secure mounting

Scope of supply: Welded-in plastic intake pipe DN 125 (5") with flange, stainless steel strainer and anti-vortex plate, including stainless steel intake pipe extension piece DN 125 (5") with flange, firefighting water intake connection with rod fitting and a fixed coupling in accordance with DIN 14244, stainless steel ventilation chimney DN 110 (4") with hood and insect-proof screen for vertical installation, holder for sign "Firefighting Water Extraction Point" with stainless steel post in accordance with DIN 4066 (B2), access ladder incl. appropriate mounting kit for mounting in tank dome, HGV telescopic dome shaft for coverage on site in accordance with DIN 3223

Advantages

Thought-out in every detail

Low installation depth
Low installation depth
Low installation depth

The minimal installation depth saves you time and money during installation.

Groundwater stable
Groundwater stable
Groundwater stable

The tank can be partially or completely installed in groundwater. Please note the maximum immersion depths and necessary ground covers in the technical data.

Lighter than concrete or steel
Lighter than concrete or steel
Lighter than concrete or steel

Tank installation made easy! The significantly lower weight of GRAF products compared to steel or concrete cisterns makes transport and installation easier.

Optionally with second tank dome
Optionally with second tank dome
Optionally with second tank dome

The GRAF XXL tank can optionally be equipped with a second tank dome.

Telescopic/Tiltable
Telescopic/Tiltable
Telescopic/Tiltable

The telescopic dome shafts are height-adjustable and can be tilted by 5 degrees. This makes it easy to adapt to the upper edge of the terrain.

Dome opening with stainless steel profile
Dome opening with stainless steel profile
Dome opening with stainless steel profile

Dome opening with stainless steel profile for high fitting accuracy and mounting safety.

Individual connections possible
Individual connections possible
Individual connections possible

Flexible connections possible according to customer requirements on the tank dome up to DN 300 or on the end face up to DN 200.

Ready for connection
Ready for connection
Ready for connection

Pre-assembled complete system incl. all accessories based on DIN 14230. This saves time and costs during installation on site.

Low installation depth

The minimal installation depth saves you time and money during installation.

Groundwater stable

The tank can be partially or completely installed in groundwater. Please note the maximum immersion depths and necessary ground covers in the technical data.

Lighter than concrete or steel

Tank installation made easy! The significantly lower weight of GRAF products compared to steel or concrete cisterns makes transport and installation easier.

Optionally with second tank dome

The GRAF XXL tank can optionally be equipped with a second tank dome.

Telescopic/Tiltable

The telescopic dome shafts are height-adjustable and can be tilted by 5 degrees. This makes it easy to adapt to the upper edge of the terrain.

Dome opening with stainless steel profile

Dome opening with stainless steel profile for high fitting accuracy and mounting safety.

Individual connections possible

Flexible connections possible according to customer requirements on the tank dome up to DN 300 or on the end face up to DN 200.

Ready for connection

Pre-assembled complete system incl. all accessories based on DIN 14230. This saves time and costs during installation on site.

Sizing

Volume [l]Useable volume [l]Length [mm]Width [mm]Height [mm]Weight [kg]order no.add to enquiry
2000016000940522501910890391400
250002100011580225019101140391401
300002500014265225019101355391402
350002900016510225019101570391403
400003200018430225019101750391404
450003700021030225019102000391405
500004000022935225019102180391406
550004400025200225019102395391407
600004900027795225019102645391408
650005200029700225019102825391409

calculated size Request for information

Technical details

Accessibility

Earth covering with loading capacity [mm] 750 - 1300
max. axle load [t] 2.2
max. vehicle weight [t] 3.5
max. vehicle weight with reinforced concrete slab [t] 60

Groundwater installation

Earth covering with groundwater installation [mm] 750 - 1500

Installation

max. earth covering [mm] (without groundwater, vehicle loading) 1500
