The Platin XXL flat rainwater tank was specially developed for rainwater harvesting. It is available in sizes from 20.000 to 65.000 l.

  • Rotating tank dome to easily align the connecting lines
  • Available with a second tank dome as an option
  • Suitable for HGV loading up to a vehicle weight of 30 t (66138 lbs)
  • Flexible connection up to DN 300 (12")
  • Connection openings with prefitted DN 150 (6") lip seals
  • Tank height of just 125 cm (4' 1")
  • High-quality, integrated DN 150 (6") filter technology
  • Dome opening with stainless steel profile for precision fit and secure mounting
  • Connection fitting of up to DN 200 (8"), on tank dome of up to DN 300

Advantages

Thought-out in every detail

Low installation depth
Low installation depth
Low installation depth

The minimal installation depth saves you time and money during installation.

Low weight
Low weight
Low weight

Tank installation made easy! The significantly lower weight of GRAF products compared to steel or concrete cisterns makes transport and installation easier.

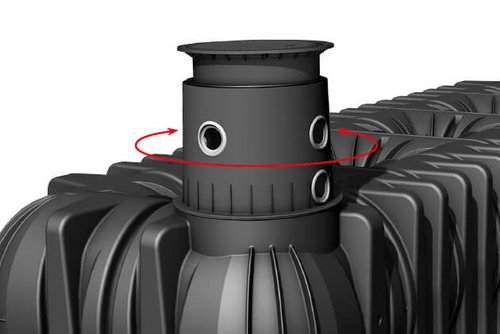

360° rotatable tank dome
360° rotatable tank dome
360° rotatable tank dome

Allows easy alignment to the connecting pipes. A tank that turns it`s head for you.

Telescopic/Tiltable
Telescopic/Tiltable
Telescopic/Tiltable

The telescopic dome shafts are height-adjustable and can be tilted by 5 degrees. This makes it easy to adapt to the upper edge of the terrain.

Optionally with second tank dome
Optionally with second tank dome
Optionally with second tank dome

The GRAF XXL tank can optionally be equipped with a second tank dome.

Sealed to the top edge of the ground
Sealed to the top edge of the ground
Sealed to the top edge of the ground

The ingress of seepage water can impair the water quality. Our tank and filter solutions are therefore sealed up to the top edge of the ground.

Dome opening with stainless steel profile
Dome opening with stainless steel profile
Dome opening with stainless steel profile

Dome opening with stainless steel profile for high fitting accuracy and mounting safety.

Individual connections possible
Individual connections possible
Individual connections possible

Flexible connections possible according to customer requirements on the tank dome up to DN 300 or on the end face up to DN 200.

Ready for connection
Ready for connection
Ready for connection

With GARANTIA tank systems, the connection seals are already pre-drilled and lip seals are pre-assembled. This saves time and therefore costs during installation.

Low installation depth

The minimal installation depth saves you time and money during installation.

Low weight

Tank installation made easy! The significantly lower weight of GRAF products compared to steel or concrete cisterns makes transport and installation easier.

360° rotatable tank dome

Allows easy alignment to the connecting pipes. A tank that turns it`s head for you.

Telescopic/Tiltable

The telescopic dome shafts are height-adjustable and can be tilted by 5 degrees. This makes it easy to adapt to the upper edge of the terrain.

Optionally with second tank dome

The GRAF XXL tank can optionally be equipped with a second tank dome.

Sealed to the top edge of the ground

The ingress of seepage water can impair the water quality. Our tank and filter solutions are therefore sealed up to the top edge of the ground.

Dome opening with stainless steel profile

Dome opening with stainless steel profile for high fitting accuracy and mounting safety.

Individual connections possible

Flexible connections possible according to customer requirements on the tank dome up to DN 300 or on the end face up to DN 200.

Ready for connection

With GARANTIA tank systems, the connection seals are already pre-drilled and lip seals are pre-assembled. This saves time and therefore costs during installation.

Sizing

Volume [l]Length [mm]Width [mm]Height [mm]Weight [kg]order no.add to enquiry
20000940522501910890391810
2500011580225019101140391811
3000014265225019101355391812
3500016510225019101570391813
4000018430225019101750391814
4500021030225019102000391815
5000022935225019102180391816
5500025195225019102395391817
6000027795225019102645391818
6500029700225019102825391819

calculated size Request for information

Technical details

Accessibility

Earth covering with loading capacity [mm] 750 - 1300
max. axle load [t] 2.2
max. vehicle weight [t] 3.5
max. vehicle weight with reinforced concrete slab [t] 60

Groundwater installation

Earth covering with groundwater installation [mm] 750 - 1500

Installation

max. earth covering [mm] (without groundwater, vehicle loading) 1500
