The Platin flat rainwater tank was specially developed for rainwater harvesting. It is available in sizes of between 1,500 and 7,500 l. A low installation depth is needed, therefore, a short installation time and low costs are granted.

  • Low installation depth means a short installation time and low installation costs
  • Integrated filter technology due to tank filter packages
  • Suitable for vehicle loading (in combination with a Telescopic dome shaft with cast iron lid)
  • Groundwater-stable up to the tank shoulder thanks to extremely stable design
  • Easy transport due to low weight
  • Secure investment thanks to 15-year warranty
  • The Platin tank can be extended in any way

Advantages

Thought-out in every detail

Low installation depth
Low installation depth
Low installation depth

The minimal installation depth saves you time and money during installation.

Low weight
Low weight
Low weight

Tank installation made easy! The significantly lower weight of GRAF products compared to steel or concrete cisterns makes transport and installation easier.

Groundwater stable
Groundwater stable
Groundwater stable

The tank can be partially or completely installed in groundwater. Please note the maximum immersion depths and necessary ground covers in the technical data.

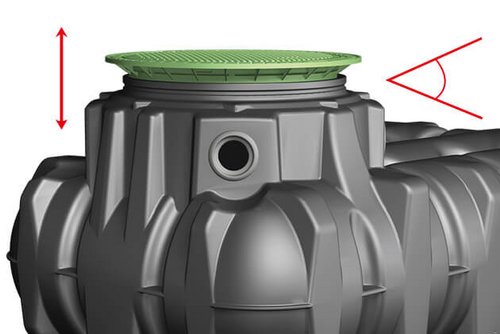

Telescopic/Tiltable
Telescopic/Tiltable
Telescopic/Tiltable

The telescopic dome shafts are height-adjustable and can be tilted by 5 degrees. This makes it easy to adapt to the upper edge of the terrain.

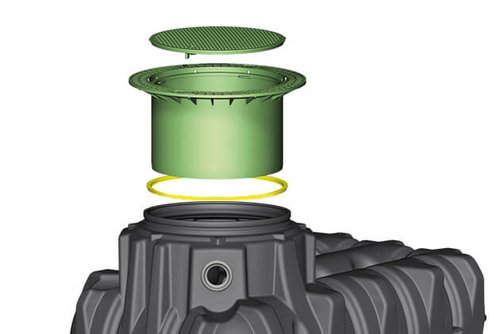

Sealed to the top edge of the ground
Sealed to the top edge of the ground
Sealed to the top edge of the ground

The ingress of seepage water can impair the water quality. Our tank and filter solutions are therefore sealed up to the top edge of the ground.

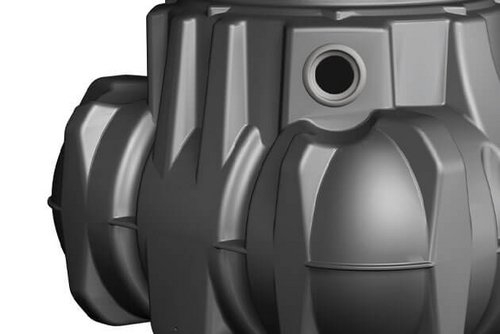

Ready for connection
Ready for connection
Ready for connection

With GARANTIA tank systems, the connection seals are already pre-drilled and lip seals are pre-assembled. This saves time and therefore costs during installation.

Low installation depth

The minimal installation depth saves you time and money during installation.

Low weight

Tank installation made easy! The significantly lower weight of GRAF products compared to steel or concrete cisterns makes transport and installation easier.

Groundwater stable

The tank can be partially or completely installed in groundwater. Please note the maximum immersion depths and necessary ground covers in the technical data.

Telescopic/Tiltable

The telescopic dome shafts are height-adjustable and can be tilted by 5 degrees. This makes it easy to adapt to the upper edge of the terrain.

Sealed to the top edge of the ground

The ingress of seepage water can impair the water quality. Our tank and filter solutions are therefore sealed up to the top edge of the ground.

Ready for connection

With GARANTIA tank systems, the connection seals are already pre-drilled and lip seals are pre-assembled. This saves time and therefore costs during installation.

Sizing

Volume [l]Length [mm]Width [mm]Height [mm]Weight [kg]order no.add to enquiry
150021001250101582390000
3000245021001050180390001
5000289023001315250390002
7500360022501565380390005

calculated size Request for information

Technical details

Accessibility

Earth covering with loading capacity [mm] 700 - 1000
max. axle load [t] 2.2
max. vehicle weight [t] 3.5
max. vehicle weight with reinforced concrete slab [t] 60

Groundwater installation

Earth covering with groundwater installation [mm] 700 - 1200

Installation

max. earth covering [mm] (without groundwater, vehicle loading) 1200
