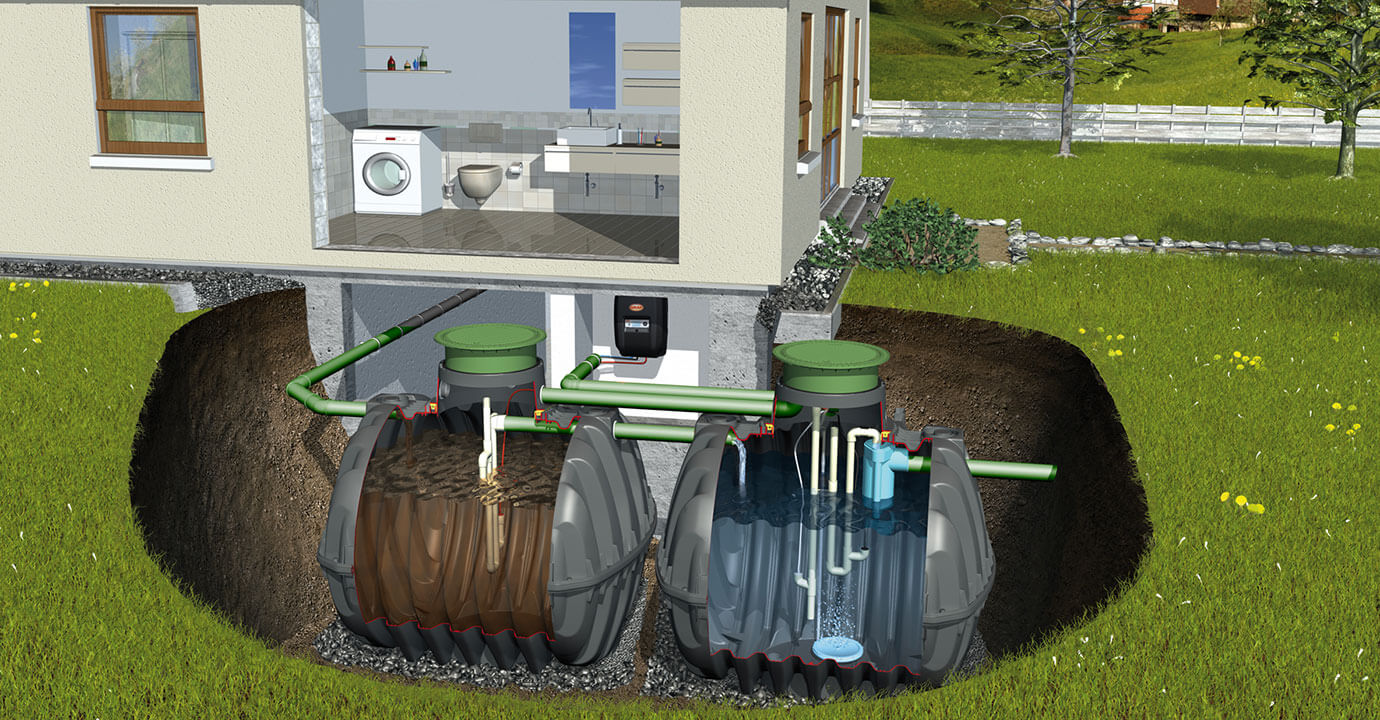

Fully certified to EN12566-3 & S.R. 66:2015, the oneAdvanced is a packaged on-site wastewater treatment system suitable for large commercial developments up to 1000PE.
The oneAdvanced wastewater treatment system is the benchmark for low running costs and treatment efficiency.
Available in gravity and pumped discharge options, it seamlessly integrates with gravity percolation trenches, a low-pressure pipe network, or a tertiary filter to meet planning application requirements and ensure compliance with local authorities.
Designed for energy efficiency and minimal maintenance, it delivers exceptional performance while keeping operational costs low, making it an ideal, cost-effective solution for business owners.
This system can be customised where a discharge licence is required.
- Safely treat and dispose of your wastewater: Ensure peace of mind with a reliable system designed to treat and dispose of wastewater safely.
- Available in gravity or pumped discharge: Choose the configuration that best suits your property's needs—whether gravity-fed for simplicity or a pumped discharge for properties with challenging ground conditions or elevation requirements.
- Suitable for 6-1000PE: Ideal for households and large-scale developments, this system efficiently handles wastewater for properties between 6 and 1000 people.
- SBR technology: Benefit from energy-efficient sequencing batch reactor (SBR) technology that operates for just 11 hours daily.
- Silent treatment process: Enjoy a quiet operation ensuring the system integrates seamlessly into your home/business environment.
- No moving parts or electrical components in the tank: Designed for durability and low maintenance, the tank itself contains no moving parts or electrical components, reducing the risk of mechanical failure and the need for repairs.
- Quick & easy installation: The system is simple to install with minimal digging, helping to protect your garden or outdoor space. It’s also designed to work well in challenging ground conditions or where there is limited access to your site.
- Can be installed in driveways using a vehicular cover: Optimise space with a robust wastewater treatment system that can be installed beneath driveways or carparks, featuring durable vehicular covers that support standard traffic loads.
- 3-year warranty on the SBR technology: Covering the advanced sequencing batch reactor (SBR) components, this warranty guarantees reliable operation and expert support.
- 15-year warranty on the wastewater tank: Built to last, the wastewater tank comes with an industry-leading 15-year warranty.
- Free delivery and commissioning: Enjoy hassle-free delivery and commissioning services available anywhere in Ireland.
- Fully certified to EN12566-3 & S.R. 66:2015: This system is fully certified to EN12566-3 and S.R. 66:2015, meeting rigorous European and Irish regulatory requirements for domestic wastewater treatment up to 50PE.
- External control cabinet for installing control panel outdoors: This keeps the components dry and secure when a plant room is not available.
Optional extras:
- +R Remote transmission
Remote monitoring allows error messages to be transmitted to mobile phones and operating data to be queried by text message. A convenient remote wastewater treatment system controlled by a mobile network or LAN is also possible.
• Greater efficiency
• Greater operating reliability
• Optimised service intervals
• Greater customer benefit thanks to monitoring service
• Low-cost remote diagnosis in the event of a fault without the service technician having to come to the site.
- P Phosphate removal
Phosphate in water results in a massive build-up of algae. The GRAF +P module ensures the safe removal of phosphate and therefore great water quality.
- +C Carbon infeed
The addition of carbon as a nutrient allows the purification process to continue and prevents biology from dying off.
- +H Disinfection
Disinfection using the +H module (by chlor or UV) satisfies even the most stringent of purity requirements for a GRAF wastewater treatment system. It reliably kills off germs and microorganisms. The clarified water, therefore complies with the EU Bathing Water Directive.
• Easy to operate
• Maintenance-friendly thanks to an easy-to-remove module
• Fitted in downstream shaft
• Controllable chlorine dosing for chlor module
- +D Removal of nitrogen
The +D module for denitrification (removal of nitrogen) results in the clarified water quality satisfying very strict requirements. The GRAF systems thereby attain a Ntotal value (total parameters of inorganic nitrogen compounds) of less than 25 mg/l.
Sizing
| Inh. | max. daily flow [l/d] | Length [mm] | Width [mm] | order no. | add to enquiry |
|---|---|---|---|---|---|
| 10 | 1500 | 2280 | 1985 | 106572 | |
| 14 | 2100 | 2390 | 2190 | 106841 | |
| 16 | 2400 | 5160 | 1755 | 106847 | |
| 21 | 3150 | 5160 | 1985 | 106931 | |
| 28 | 4200 | 5380 | 2190 | 106943 | |
| 38 | 5700 | 7600 | 2040 | 105389 | |
| 46 | 6900 | 7640 | 2240 | 105390 | |
| 50 | 7500 | 8600 | 2420 | 105346 | |
| 75 | 11250 | 9900 | 2500 | 106125 | |
| 100 | 15000 | 12900 | 2500 | 106404 | |
| 125 | 18750 | 16200 | 2500 | 106126 | |
| 150 | 22500 | 17700 | 2500 | 106106 | |
| 175 | 26250 | 21600 | 2500 | 105220 | |
| 200 | 30000 | 26400 | 2500 | 106970 | |
| 220 | 33000 | 23500 | 2500 | 105221 | |
| 250 | 37500 | 13300 | 8700 | 106049 | |
| 275 | 41250 | 30500 | 2500 | 105222 | |
| 300 | 45000 | 13300 | 8700 | 106050 | |
| 350 | 52500 | 19900 | 5600 | 106492 | |
| 400 | 60000 | 21400 | 5600 | 105266 | |
| 500 | 75000 | 27500 | 5600 | 105224 | |
| 600 | 90000 | 16200 | 11800 | 105225 | |
| 700 | 105000 | 27500 | 5600 | 105226 | |
| 800 | 120000 | 26200 | 8700 | 105227 | |
| 900 | 135000 | 29100 | 8700 | 105228 | |
| 1000 | 150000 | 30500 | 8700 | 105229 |
