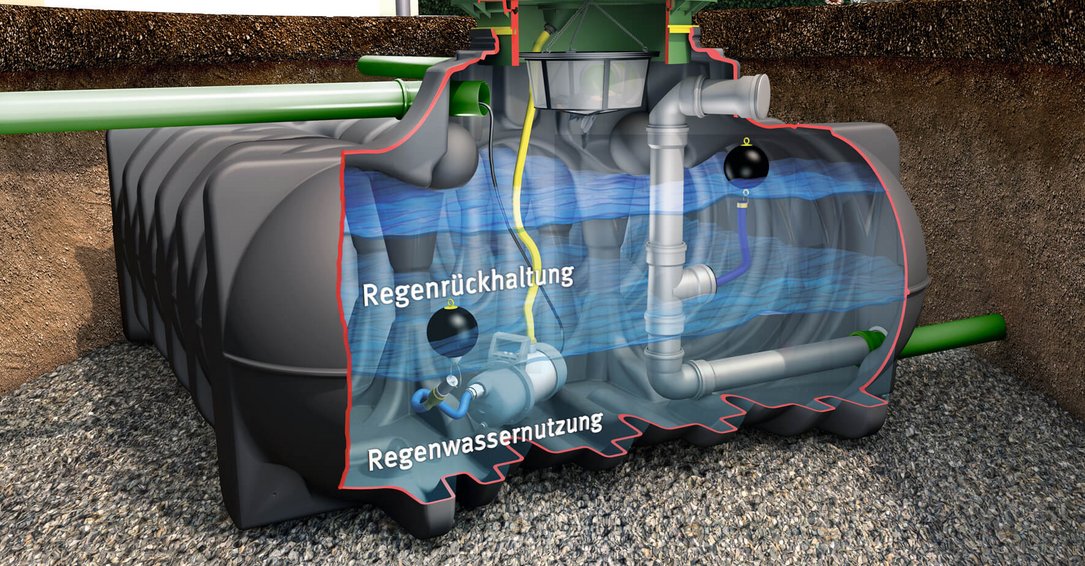

For combined rainwater detention and rainwater harvesting

  • To guarantee retention of rainwater, a delayed drain is fitted in the channel with 0.05 to 2.0 l/sec. depending on the customer’s specifications and the retention or harvest volumes. In the event of heavy rainfall, the water level in the cistern rises above the max. water level (short term) and is drained into the channel at delayed speed using a floating drain choke.
  • This relieves the channel and the treatment works.
  • The water level can rise to the emergency overflow and sinks slowly back down again after the rain to the long-term max. water level. This rainwater can then be harvested.
  • We also construct and supply individual, special solutions.
  • Sizes between 3,000 – 10,000 l with corresponding retention volumes are possible.
  • This special type of rainwater harvesting is prescribed or subsidised in many communities.

Sizing

Volume [l]Length [mm]Width [mm]Height [mm]Weight [kg]order no.add to enquiry
7500360022501565385390324
5000289023001315255390315
3000245021001050185390312

calculated size Request for information

Technical details

Accessibility

Earth covering with loading capacity [mm] 700 - 1000
max. axle load [t] 2.2
max. vehicle weight [t] 3.5
max. vehicle weight with reinforced concrete slab [t] 60

Groundwater installation

Earth covering with groundwater installation [mm] 700 - 1200

Installation

max. earth covering [mm] (without groundwater, vehicle loading) 1200
