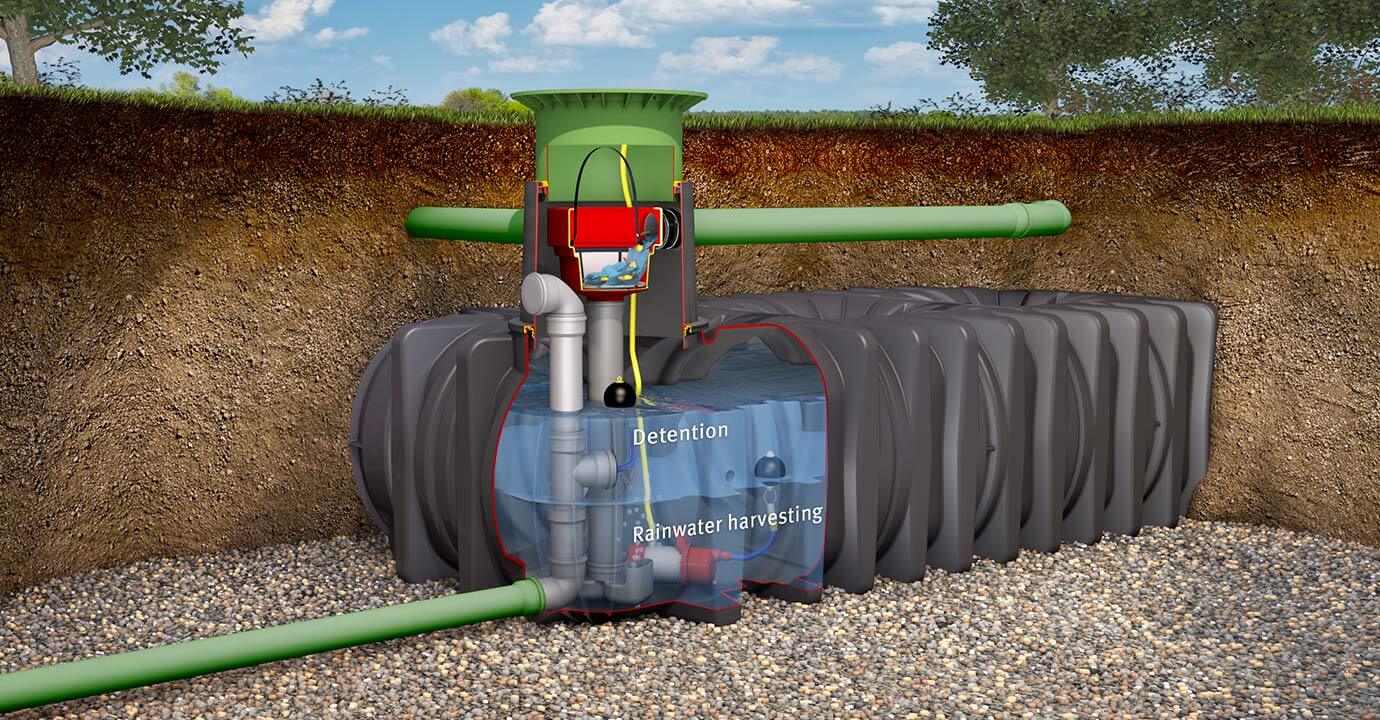

For combined rainwater detention and rainwater harvesting

  • To guarantee retention of rainwater, a delayed drain is fitted in the channel with 0.05 to 2.0 l/sec. depending on the customer’s specifications and the retention or harvest volumes. In the event of heavy rainfall, the water level in the cistern rises above the max. water level (short term) and is drained into the channel at delayed speed using a floating drain choke.
  • This relieves the channel and the treatment works.
  • The water level can rise to the emergency overflow and sinks slowly back down again after the rain to the long-term max. water level. This rainwater can then be harvested.
  • We also construct and supply individual, special solutions.
  • This special type of rainwater harvesting is prescribed or subsidised in many communities.


Advantages Platin XL flat tank:

  • Rotating tank dome to easily align the connecting lines
  • Available with a second tank dome as an option
  • Suitable for HGV loading up to a vehicle weight of 30 t (66138 lbs)
  • Flexible connection up to DN 300 (12")
  • Connection openings with prefitted DN 150 (6") lip seals
  • Tank height of just 125 cm (4' 1")
  • High-quality, integrated DN 150 (6") filter technology
  • Dome opening with stainless steel profile for precision fit and secure mounting
  • Connection fitting of up to DN 200 (8"), on tank dome of up to DN 300


Scope of supply:

  • Platin XL flat tank
  • Retention set: floating choke drain, outlet fittings with emergency overflow, DN 100 (4") connection

Not included in the scope of supply:

  • Matching cover
  • Installation of optional Platin XL/XXL detention/retention filter package 2
  • Garden Comfort technical package


Length [mm]Width [mm]Height [mm]Weight [kg]Volume [l]order no.add to enquiry

calculated size Request for information

Technical details


Earth covering with loading capacity [mm] 700 - 1300
max. axle load [t] 2.2
max. vehicle weight [t] 3.5
max. vehicle weight with reinforced concrete slab [t] 60

Groundwater installation

Earth covering with groundwater installation [mm] 700 - 1500


max. earth covering [mm] (without groundwater, vehicle loading) 1500
