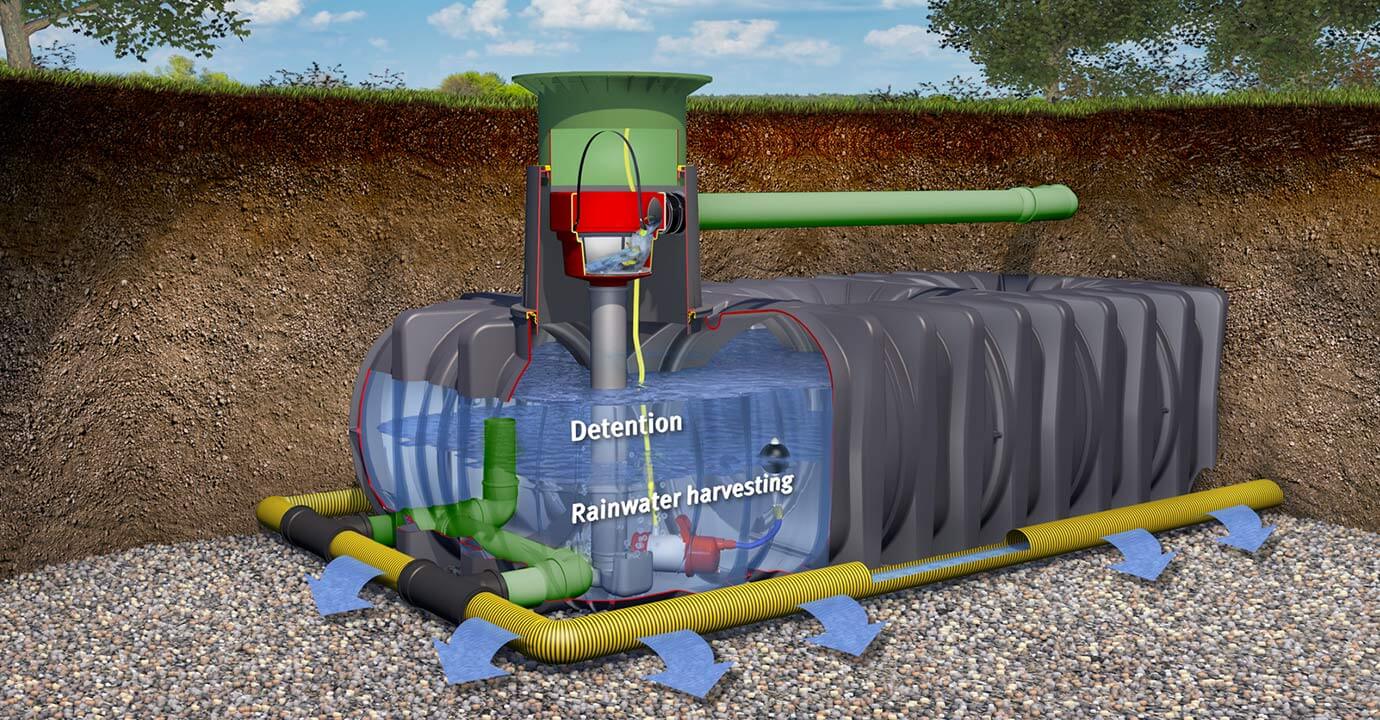

Platin XL infiltration tank Plus for combination of rainwater-retention and rainwater-harvesting (2in1-solution)

  • Reduction of hydraulic loads during heavy rainfall events
  • Water level can rise up to the emergency overflow in the tank and is slowly going down again, afterwards
  • Combination of infiltration and rainwater-harvesting in one single tank
  • In several regions, this special kind of rainwater-management is prescribed or is supported
  • Flexible defining of the usable volume

Advantages of Platin XL flat-tank:

  • Dome opening with stainless steel profile for precision fit and secured assembling
  • Rotating tank dome to easily align the connecting lines
  • Suitable for HGV loading up to a vehicle weight of 30t (66138 lbs) in combination with load distribution plate
  • Flexible connection up to DN 300 (12")
  • Connection openings with prefitted DN 150 (6") lip seals
  • Tank height of just 125 cm (4' 1")
  • Connection fitting of up to DN 200 (8"), on tank dome, even up to DN 300

Scope of supply: Platin XL infiltration tank, Special sealings, Drainage pipes and -connections, Drain holes, Rainwater-harvesting set: internal piping DN150

Recommended accessories (not included in the scope of supply):

  • Matching cover
  • Installation of optional Platin XL retention package 2
  • Garden Comfort technical package

Advantages

Thought-out in every detail

Infiltration plus
Infiltration plus
Infiltration plus

A combined infiltration/rainwater utilisation saves up to 50 % drinking water. The water can be used for garden irrigation, cleaning work and in the house also for flushing toilets and washing machines.

Optionally with second tank dome
Optionally with second tank dome
Optionally with second tank dome

The GRAF XXL tank can optionally be equipped with a second tank dome.

Saves precipitation water charges
Saves precipitation water charges
Saves precipitation water charges

This product allows you to save on rainwater charges. Please contact your municipality for more information.

Dome opening with stainless steel profile
Dome opening with stainless steel profile
Dome opening with stainless steel profile

Dome opening with stainless steel profile for high fitting accuracy and mounting safety.

Individual connections possible
Individual connections possible
Individual connections possible

Flexible connections possible according to customer requirements on the tank dome up to DN 300 or on the end face up to DN 200.

Infiltration plus

A combined infiltration/rainwater utilisation saves up to 50 % drinking water. The water can be used for garden irrigation, cleaning work and in the house also for flushing toilets and washing machines.

Optionally with second tank dome

The GRAF XXL tank can optionally be equipped with a second tank dome.

Saves precipitation water charges

This product allows you to save on rainwater charges. Please contact your municipality for more information.

Dome opening with stainless steel profile

Dome opening with stainless steel profile for high fitting accuracy and mounting safety.

Individual connections possible

Flexible connections possible according to customer requirements on the tank dome up to DN 300 or on the end face up to DN 200.

Sizing

Volume [l]Width [mm]Height [mm]Weight [kg]Length [mm]order no.add to enquiry
1000022501910549.84900390020
15000225019107107500390021

calculated size Request for information

Technical details

Accessibility

Earth covering with loading capacity [mm] 750 - 1300
max. axle load [t] 2.2
max. vehicle weight [t] 3.5
max. vehicle weight with reinforced concrete slab [t] 60

Groundwater installation

Earth covering with groundwater installation [mm] 750 - 1500

Installation

max. earth covering [mm] (without groundwater, vehicle loading) 1500
