firefighting tank modular system - individually adaptable to your needs
Our firefighting water module system allows you to flexibly adapt individual components to specific country requirements.
Your customized modular system with the Carat XXL fire fighting water tank
The classic model, large volume with low space requirements!
Load capacity:
Suitable for pedestrian loading ✔
Suitable for car loading ✔
Suitable for truck loading ✔
Nominal volume: max. 122m3
Storage volume according to DIN 14230: 90 %
Groundwater-stable: To the centre of the tank
Installation depth: 3,30 - 4,05 m
Basic firefighting supply:
The scope of delivery includes:
- Carat XXL
- Acces ladder
- Vent pip
- PE suction pipe
- Anti-vortex plate
- Suction strainer
- Tank dome Maxi (with a DN110 drilling for ventilation)
- Telescopic dome shaft 600 Universal
- Sign and holder
Extension:
- V2A suction pipe
(V2A suction pipe is the link to the suction connection)- PE suction pipe
(serve to reposition the suction connection)- 90° PE elbow
(serve to reposition the suction connection)
Suction connection:
- Suction connection form B with A fixed coupling
- Suction connection form B with 4"internal thread
(suitable coupling can be universally installed on-site here)- Suction connection form B with French coupling
Expansion tank (optional):
The scope of delivery includes:
• Carat XXL
• 2x welded sockets DA250
• Access Ladder
• Vent pipe
• Telescopic dome shaft 600 Universal

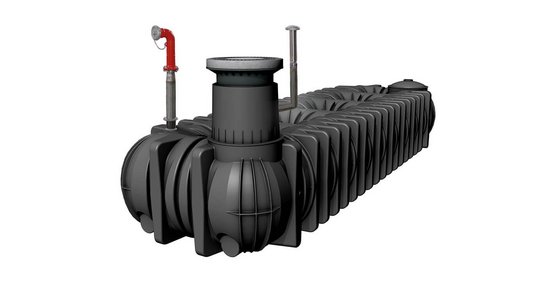

Your customized modular system with the Platin XXL fire fighting water tank
Problem solver for shallow installation situations due to high groundwater or rocky soil!
Load capacity:
Suitable for pedestrian loading ✔
Suitable for car loading ✔
Suitable for truck loading ✔
Nominal volume: Max. 65m3
Storage volume according to DIN 14230: 80 %
Groundwater-stable: In the accessible area of fuel tanks
Installation depth: 2,00 - 2,75 m
Basic firefighting supply:
Scope of delivery:
• Platin XXL
• Ladder
• Vent pipe
• Anti vortex plate
• Suction strainer
• Suction pipe
• Tel. -Dome shaft uni
• Holder for sign
• Sign
Extension:
- V2A suction pipe
(V2A suction pipe is the link to the suction connection)- PE suction pipes
(serve to reposition the suction connection)- 90° PE elbow
(serve to reposition the suction connection)
Suction connection:
- Suction connection form B with A fixed coupling
- Suction connection form B with 4"internal thread
(suitable coupling can be universally installed on-site here)- Suction connection form B with French coupling
Expansion tank (optional):
The scope of delivery includes:
• Platin XXL
• 2x welded spigot DA250
• Ladder
• Vent pipe
• Telescopic dome shaft uni
Your customized modular system with the EcoBloc maxx
Special solution for large volumes or complex installation situations!
Load capacity:
Suitable for pedestrian loading ✔
Suitable for car loading ✔
Suitable for truck loading ✔
Nominal volume: ∞
Storage volume according to DIN 14230: 80 - 93 %
Groundwater-stable: Project-specific
Installation depth: Max. 5 m
Basic firefighting supply:
• Carat XXL 16.000 l
• Access Ladder
• Vent pipe
• Anti vortex plate
• Suction strainer
• Suction pipe
• Telescopic dome shaft Universal 600
• Holder for sign
• Sign
Extension:
- V2A suction pipe
(V2A suction pipe is the link to the suction connection)- PE suction pipe
(serve to reposition the suction connection)- 90° PE elbow
(serve to reposition the suction connection)
Suction connection:
- Suction connection form B with A fixed coupling
- Suction connection form B with 4"internal thread
(suitable coupling can be universally installed on-site here)- Suction connection form B with French coupling
Expansion tank (optional):
The scope of delivery includes:
• EcoBloc maxx
• Connectors for connection
