Stormwater management system with various applications: Rainwater infiltration, Stormwater attenuation, Rainwater harvesting, 40 tons/HS-20, 410 m³ (14.480 ft³)/Truck

Various applications: Rainwater infiltration, Stormwater attenuation, Rainwater harvesting

  • High storage volume
    GRAF infiltration modules have three times the storage volume of a standard gravel infiltration ditch. One module therefore takes the place of around 1300 kg (1,4 tons) of gravel or a 50 m (164') drainage pipe. Since you don‘t have to excavate so much soil and enjoy great value for money compared with a standard gravel infiltration ditch, the GRAF modules save you hard-earned cash!
  • Service life of over 50 years
    A durable product design ensures sustainability. The GRAF EcoBloc system and the Vario 800 flex shaft system is designed for a service life of over 50 years.
  • Easy to install
    The modules are fitted simply, at speed and in various ways. They can be installed without heavy machinery – one EcoBloc maxx module weighs just 9 kg (19.8 lbs).
  • Up to 96 % reservoir volume
    The GRAF EcoBloc maxx has a gross volume of 225 litres (59.4 US gal.) and a reservoir volume of 217 litres (57.3 US gal.). The EcoBloc variant maxx still offer a reservoir coefficient of 96 % despite their high load-bearing capacity.
  • Installation depth of up to 5 metres (16' 4.8")
    Even under very heavy loads, GRAF EcoBloc maxx modules can be installed at a depth of up to 5 metres (16' 4.8"). This means that up to 13 layers are possible. Please consult GRAF when the installation depth is greater than 5 metres.
  • BBA Agrément Certificate Number 15/5200 for GRAF EcoBloc maxx
  • 5 years warranty

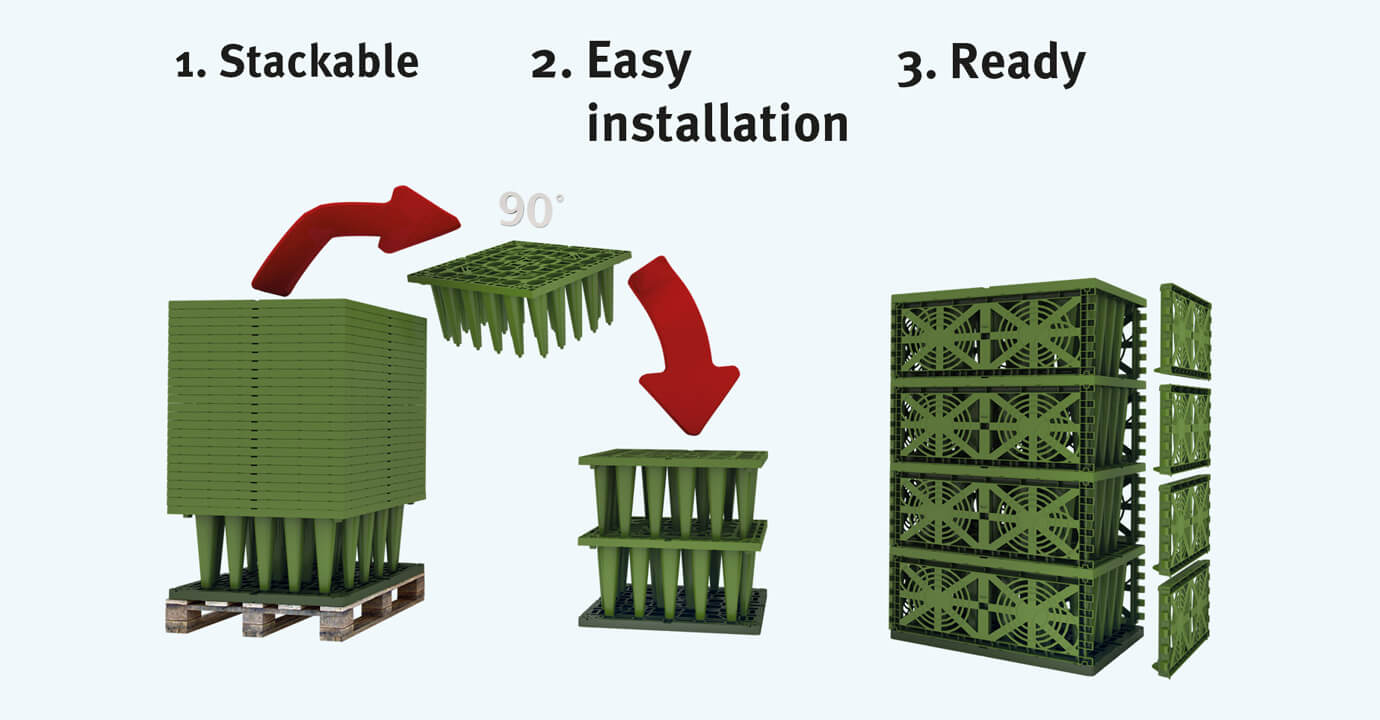

Eco-friendly product – green logistics:

  1. Stackable
    To save space during transport, the EcoBloc maxx modules are stacked into each other. This minimizes transport costs, storage space in stock and CO2 emissions.
  2. Easy installation
    The EcoBloc base plate forms the foundations of each EcoBloc system. Up to 13 EcoBloc modules can be fitted on one base plate.
  3. Ready
    The side faces are sealed with EcoBloc end plates. The EcoBloc system can be adapted to match individual requirements.

Advantages

Thought-out in every detail

Saves precipitation water charges
Saves precipitation water charges
Saves precipitation water charges

This product allows you to save on rainwater charges. Please contact your municipality for more information.

Logistics-optimised
Logistics-optimised
Logistics-optimised

One truck load corresponds to a storage volume of 455 m³.  The infiltration trenches or manhole elements are stacked inside each other on pallets. This minimises transport costs, storage space and CO2 emissions.

100% Recycling
100% Recycling
100% Recycling

Made 100% from our own recycled material Upcyclen, which is produced in our competence centre for raw materials in Herbolzheim. Your contribution to environmental protection with long-lasting products!

Saves precipitation water charges

This product allows you to save on rainwater charges. Please contact your municipality for more information.

Logistics-optimised

One truck load corresponds to a storage volume of 455 m³.  The infiltration trenches or manhole elements are stacked inside each other on pallets. This minimises transport costs, storage space and CO2 emissions.

100% Recycling

Made 100% from our own recycled material Upcyclen, which is produced in our competence centre for raw materials in Herbolzheim. Your contribution to environmental protection with long-lasting products!

Sizing

Volume [l]Length [mm]Width [mm]Height [mm]Weight [kg]order no.add to enquiry
2258008003509402200

calculated size Request for information
