Modular system - wastewater treatment
Choose your system from four different modulars:

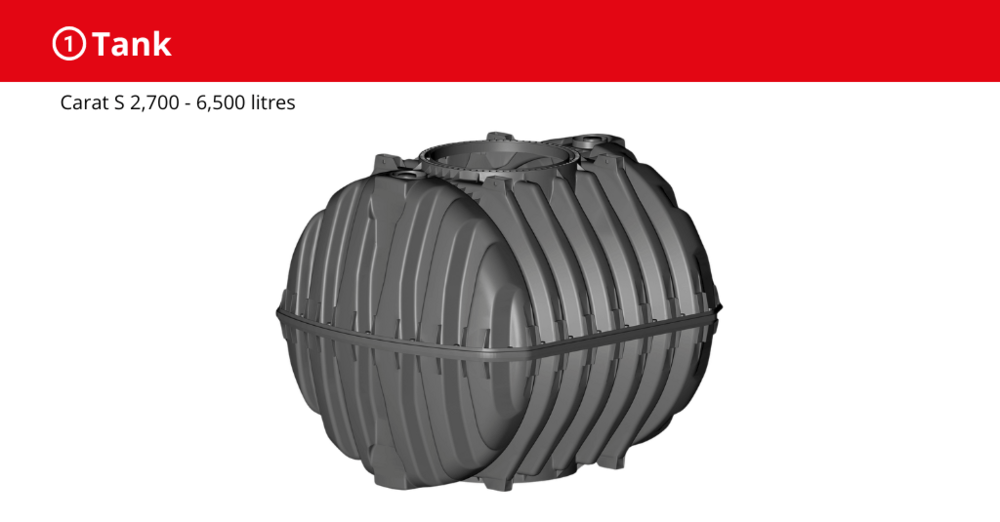

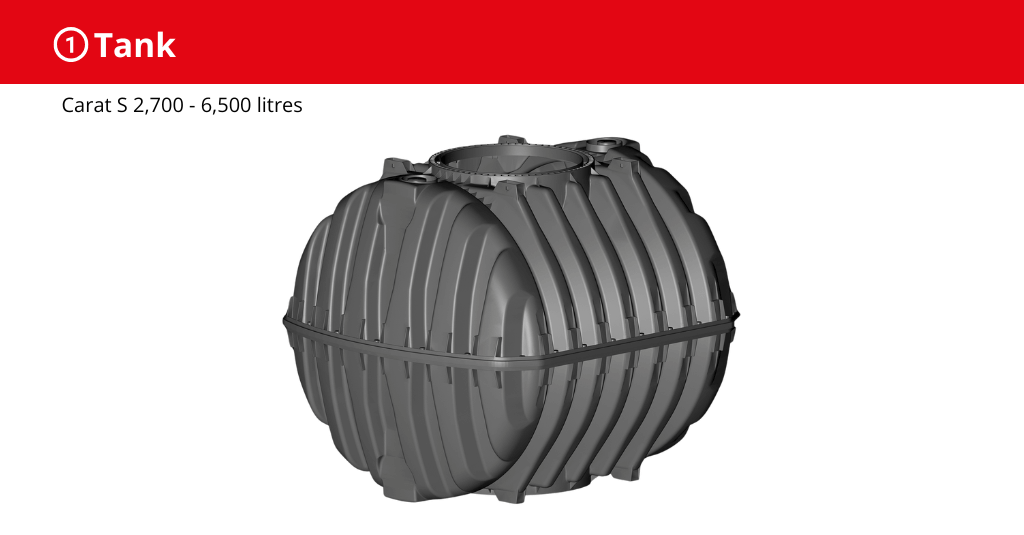

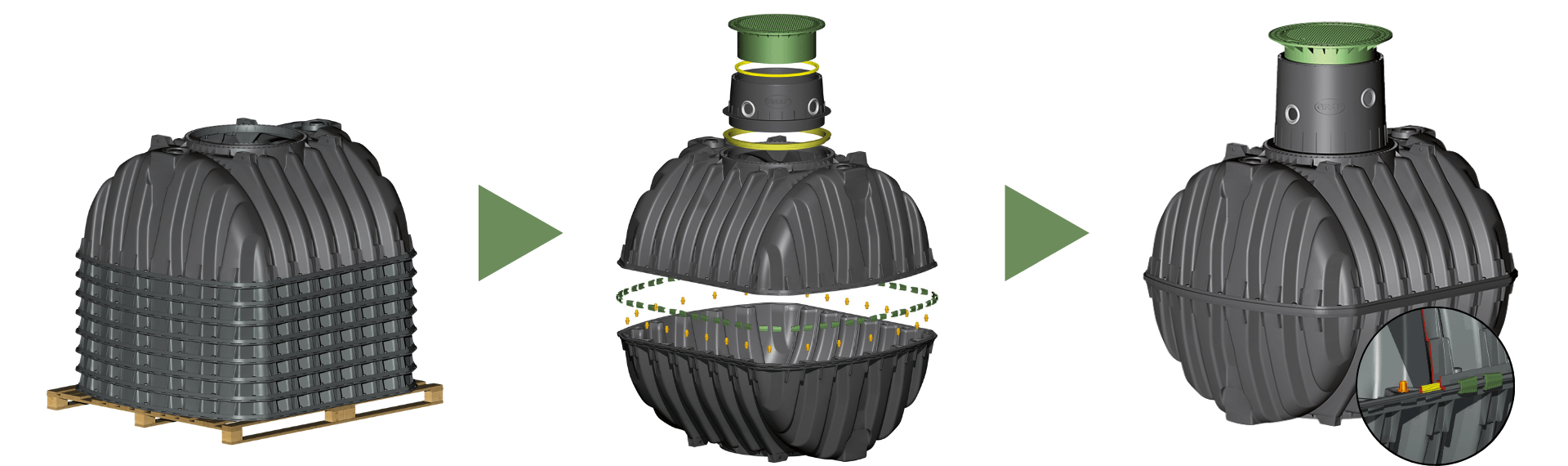

Carat S
- Suitable for vehicel loading
- Size 2,700 - 6,500 litres
- Max. earth covering: 1500 mm
- Max- vehicle weight: 12 to (26456 Ibs)
- Earth covering requiered for vehicle loading: 800 - 1500 mm
- Groundwater stability: uo to tank equator
- Eart convering required for groundwater stability: 800 - 1500 mm
- Connection: DN110 / DN160 /DN200 on top
- Used with vehicle loading telescopic tank dome

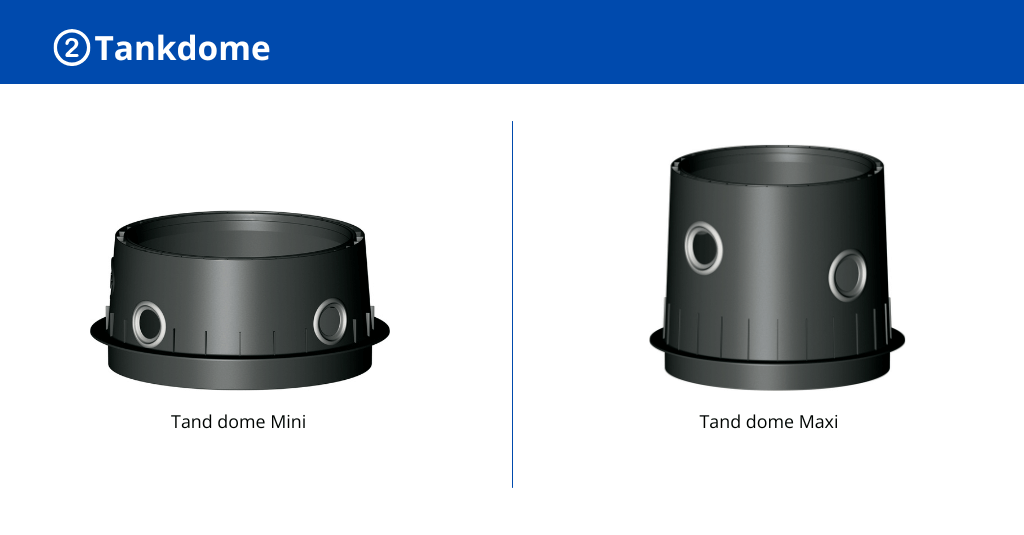

Tank dome Mini
- Weight: 11 kg (24 Ibs)
- For especially flat installation
- Incl. 3 edge seals
- For systems up to 2 tanks
Tank dome Maxi
- Weight: 15 kg (33 Ibs)
- For large earth coverings
- Icl. 5 edge seals
- For multi tank systems ≥ 4 tanks

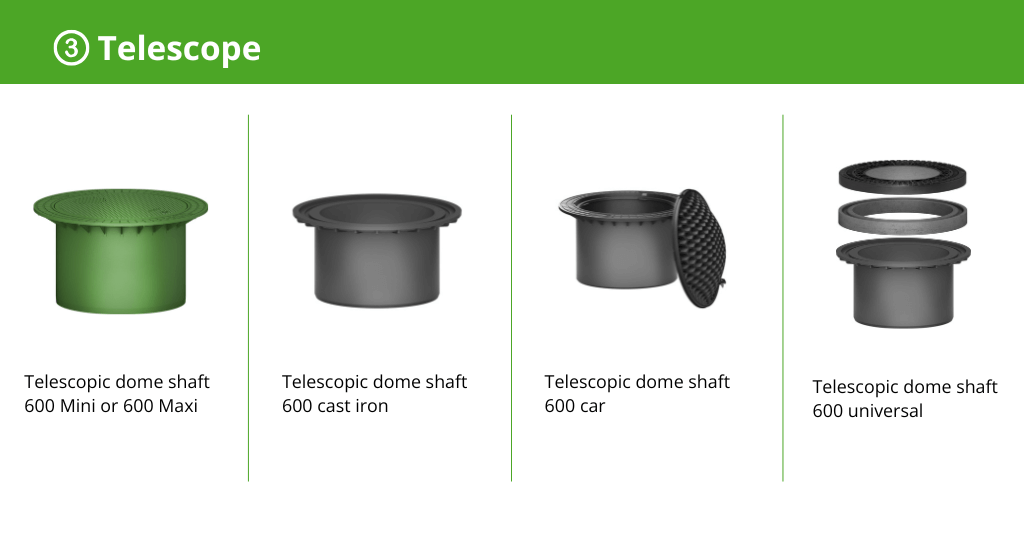

Telescopic dome shaft 600 Mini and Maxi
- suitable for pedestrian loading
Telescopic dome shaft 600 cast iron,
universale and car5
- suitable for vehicel loading

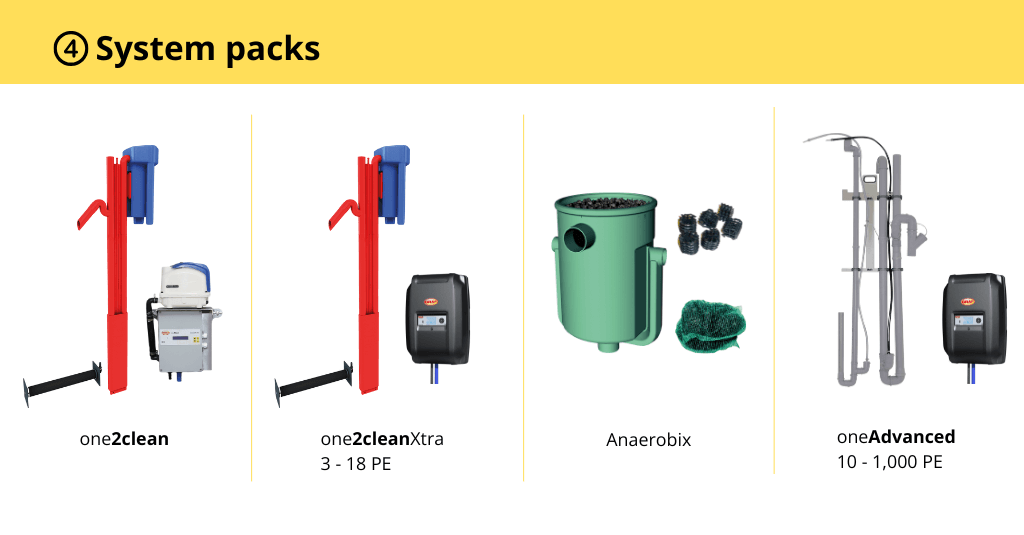

System pack one2clean/one2cleanXtra
- wastewater tank with a scum baffle
About One2clean About one2cleanXtra
System pack oneAdvanced
- wasterwater tank with two chambers
Anaerobix
- Aerobic filter system for GRAF wastewater tanks
- Increasing the cleaning performance of a wastwater tank

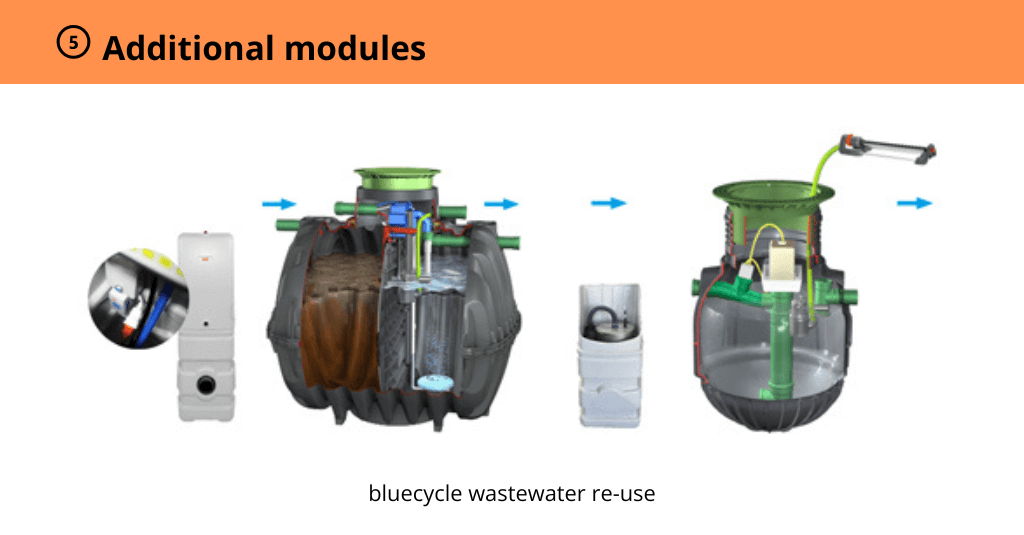

Bluecycle wastewater re-use
- Re-use for: Watering lawn and flowers, watering fruit and vegetable garden, clean your car, general cleaning
About Bluecycle wastewater re-use
Advanced Wastewater Treatment with GRAF Modular Solutions
GRAF offers a comprehensive range of modular solutions designed to meet the highest standards in wastewater treatment. Each module targets specific contaminants and operational challenges, ensuring optimal water quality and system performance. From nitrogen and phosphate removal to remote monitoring and hygiene control, GRAF’s innovative modules provide tailored solutions for residential, commercial, and remote applications.
